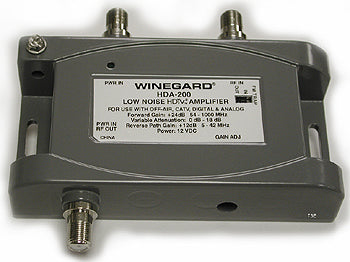

Winegard HDA-200, Distribution Amplifier, 24 dB gain, 54-1000 MHz

Winegard WINHDA-200/HDA200 -- DISTRIBUTION AMP 24dB, 54-1000 MHz

HDA Series Distribution Amplifiers are designed to meet the market demand for a heavy duty, quality built, cost effective solution for the amplification and distribution of analog/digital HDTV broadcast signals from Off-Air and cable TV stations.

FEATURES

• Low-Noise Distribution Amplifier – Overcomes signal loss in coaxial cable running from antenna to TV.
• 20dB FM Trap – Stops FM signals from interfering with off-air signals, providing clearer HDTV reception.
• Weather-Resistant – Housed in an industrial-grade enclosure to protect against the elements.

SPECIFICATIONS

• Maximum Gain: 24dB with variable gain control 0-18dB. Amplifies signals from 54-1000 MHz.
• Single RF Output: +12dB gain on two-way bi-pass
• Power: 12 VDC

INCLUDES

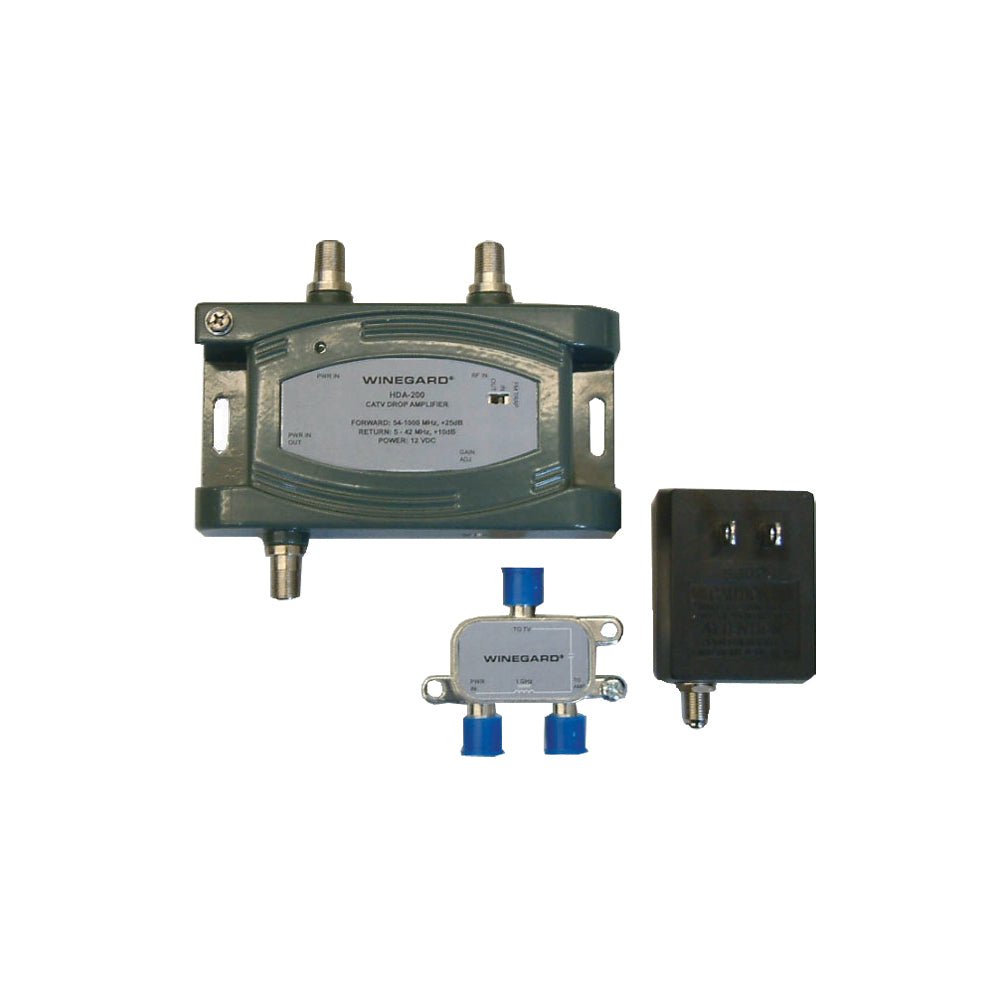

• HDA-200 Distribution Amplifier

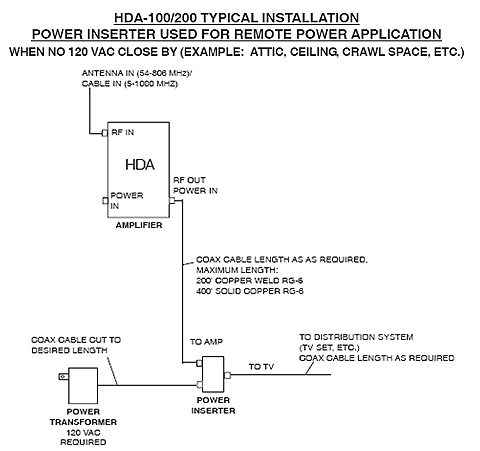

• Power Inserter
• Power Supply

• Mounting Hardware
• Instructions

DIMENSIONS & WEIGHTS

• Height: 4.50"
• Width: 1.25"
• Length: 5"
• Weight: 0.6 lb

Compare to: Macom TA-25, Eagle Aspen  DISTAMP-25-GX
