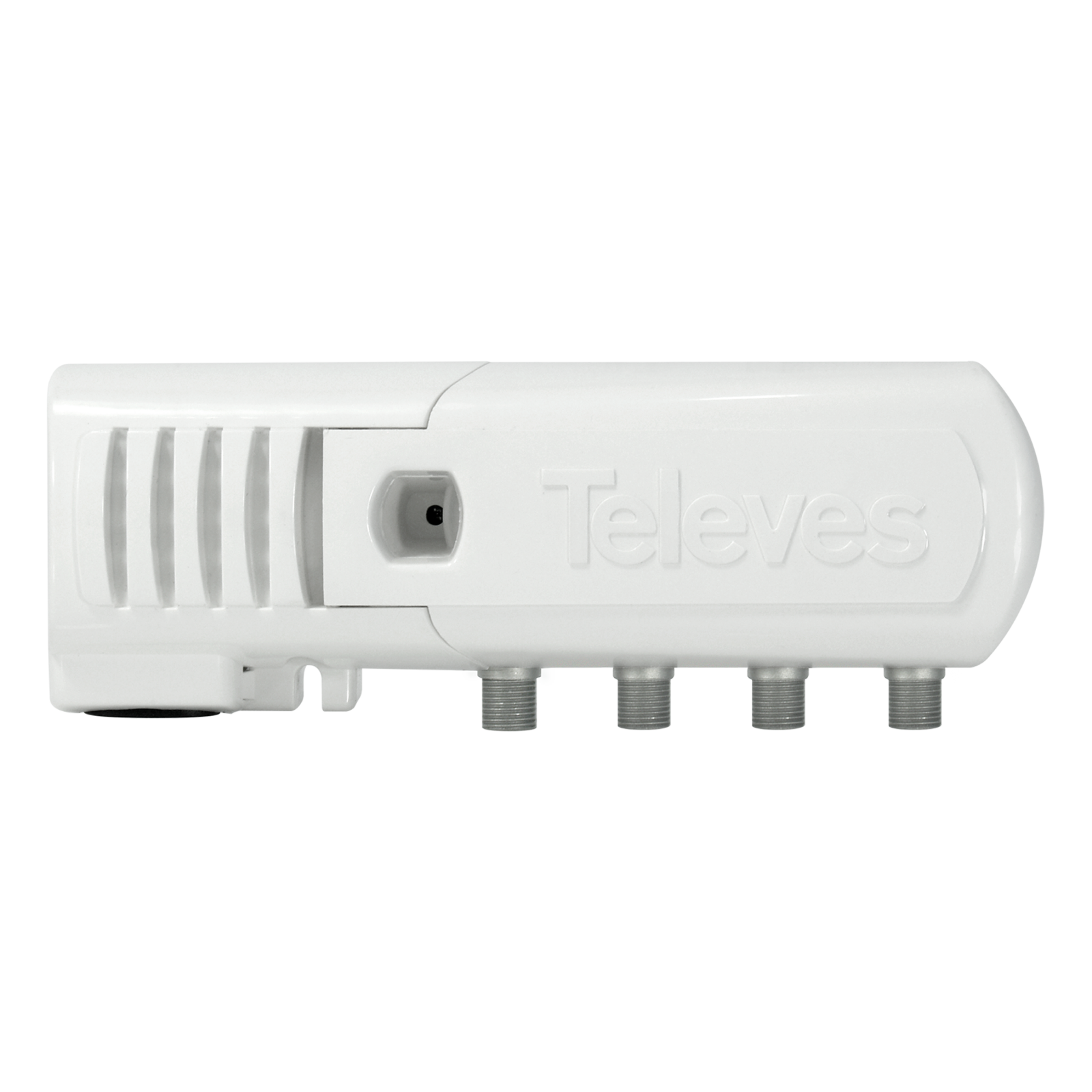

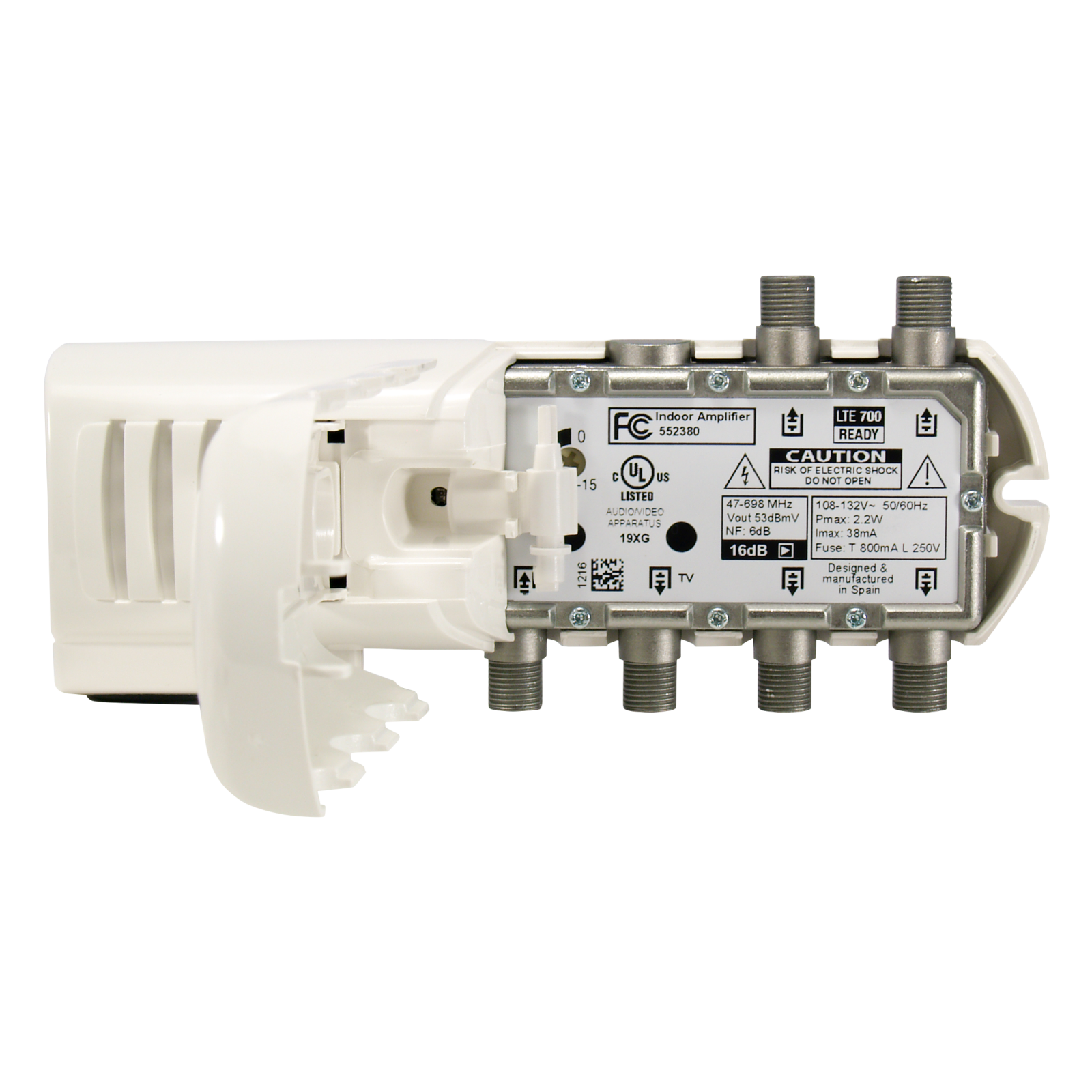

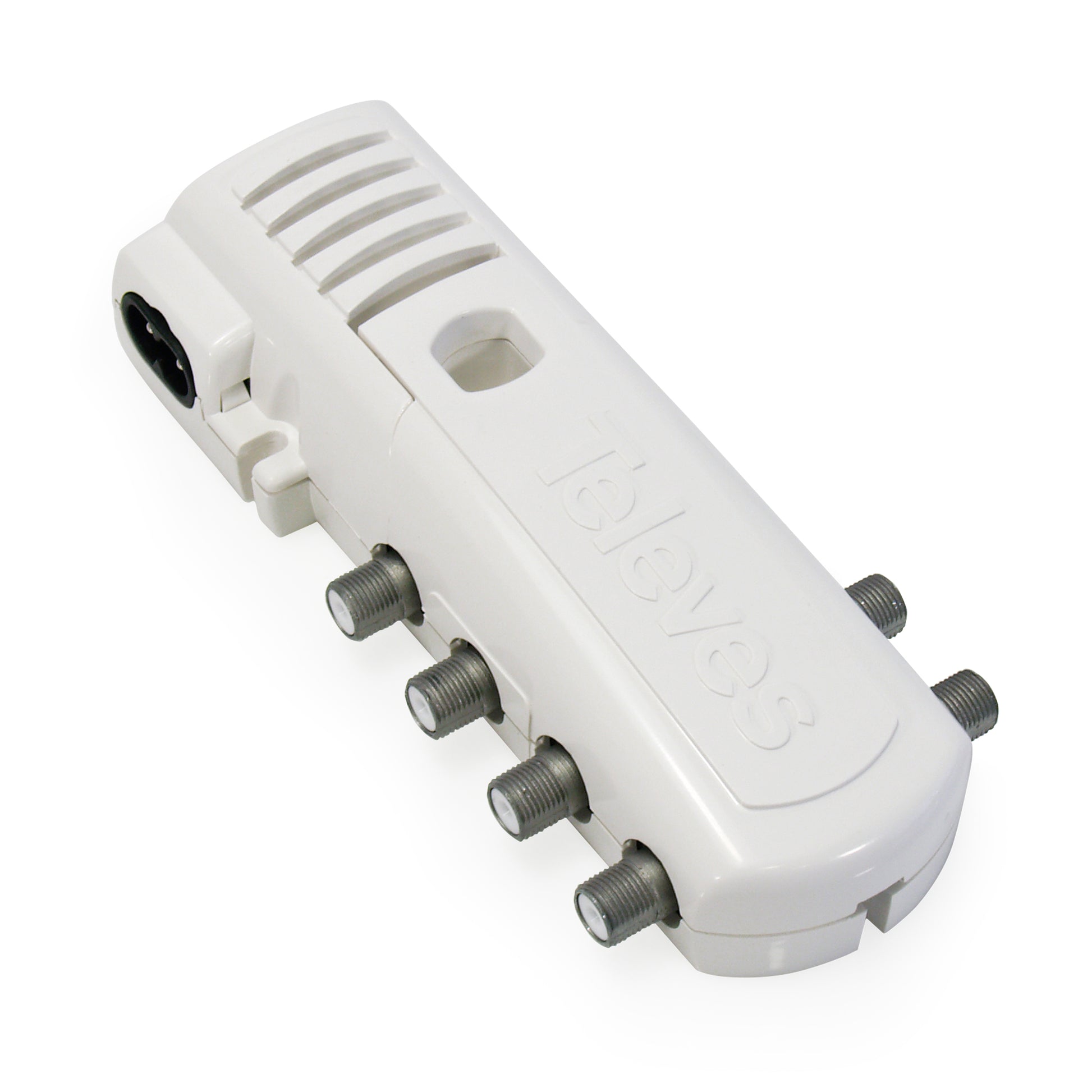

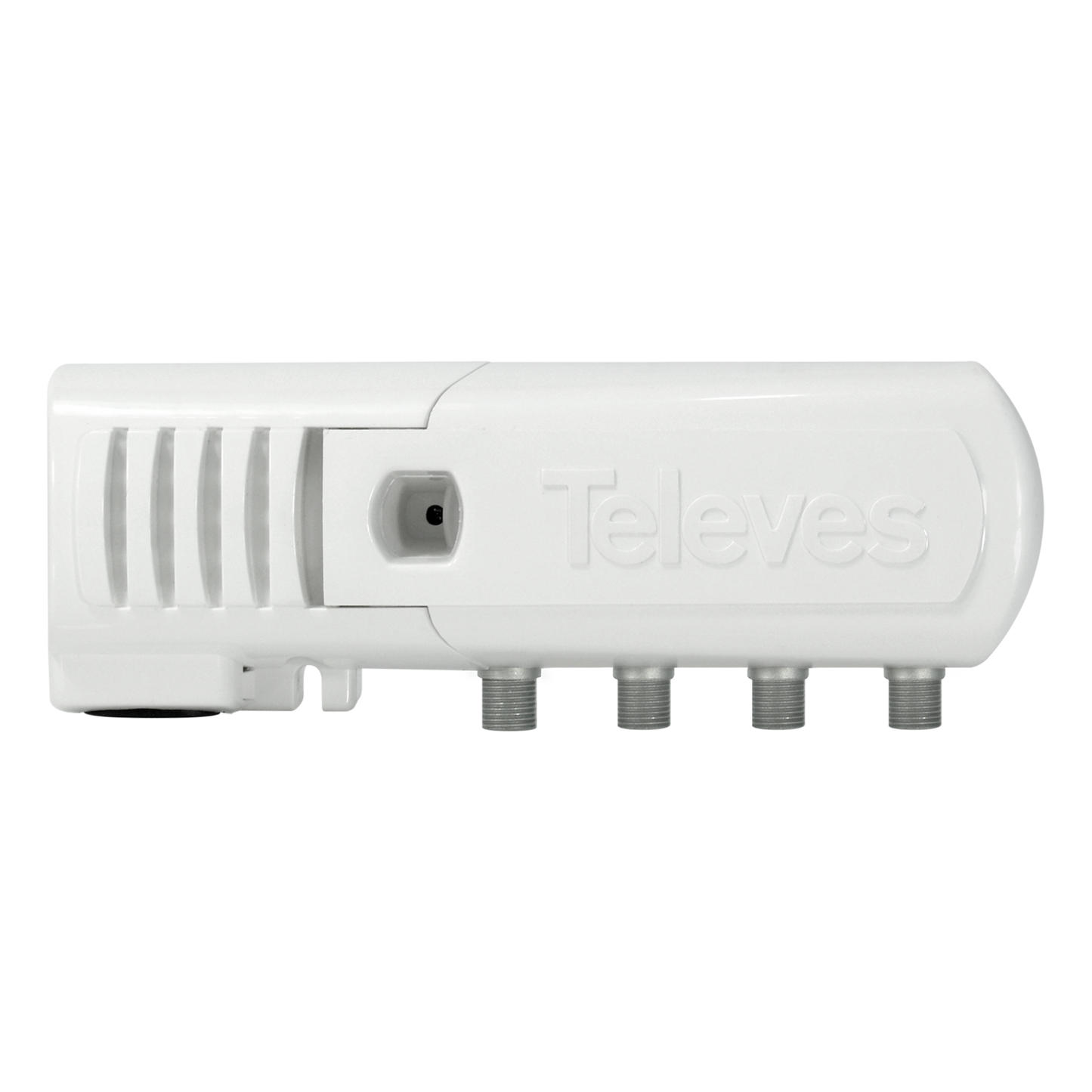

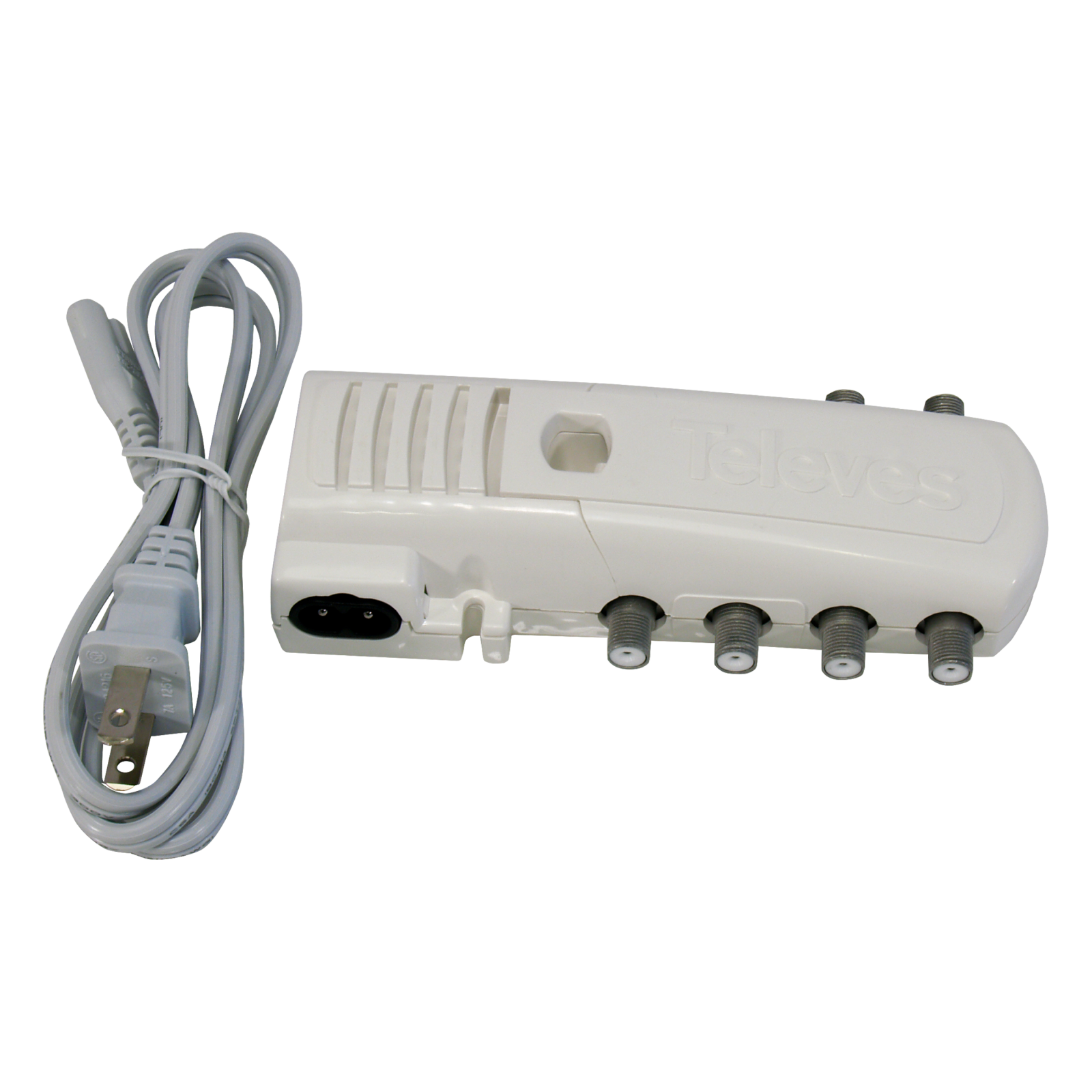

Televes 552380 Distribution Amplifier "F" domestic amplifier, 5 outputs (4+TV): VHF/UHF 16dB Gain, Adjustable

The TV output provides a lower gain for direct connection to the television set (no outlet installation).
The amplifier is UL certified (US plug).

• 16dB gain on VHF and UHF signals
• LTE700 filtering to eliminate possible interference from cell phone signals

• Low-impact visual design and limited size
• Integrated high-performance switched-mode power supply (40% less than a typical amplifier )
• Fully automated manufacturing subject to the most stringent quality controls

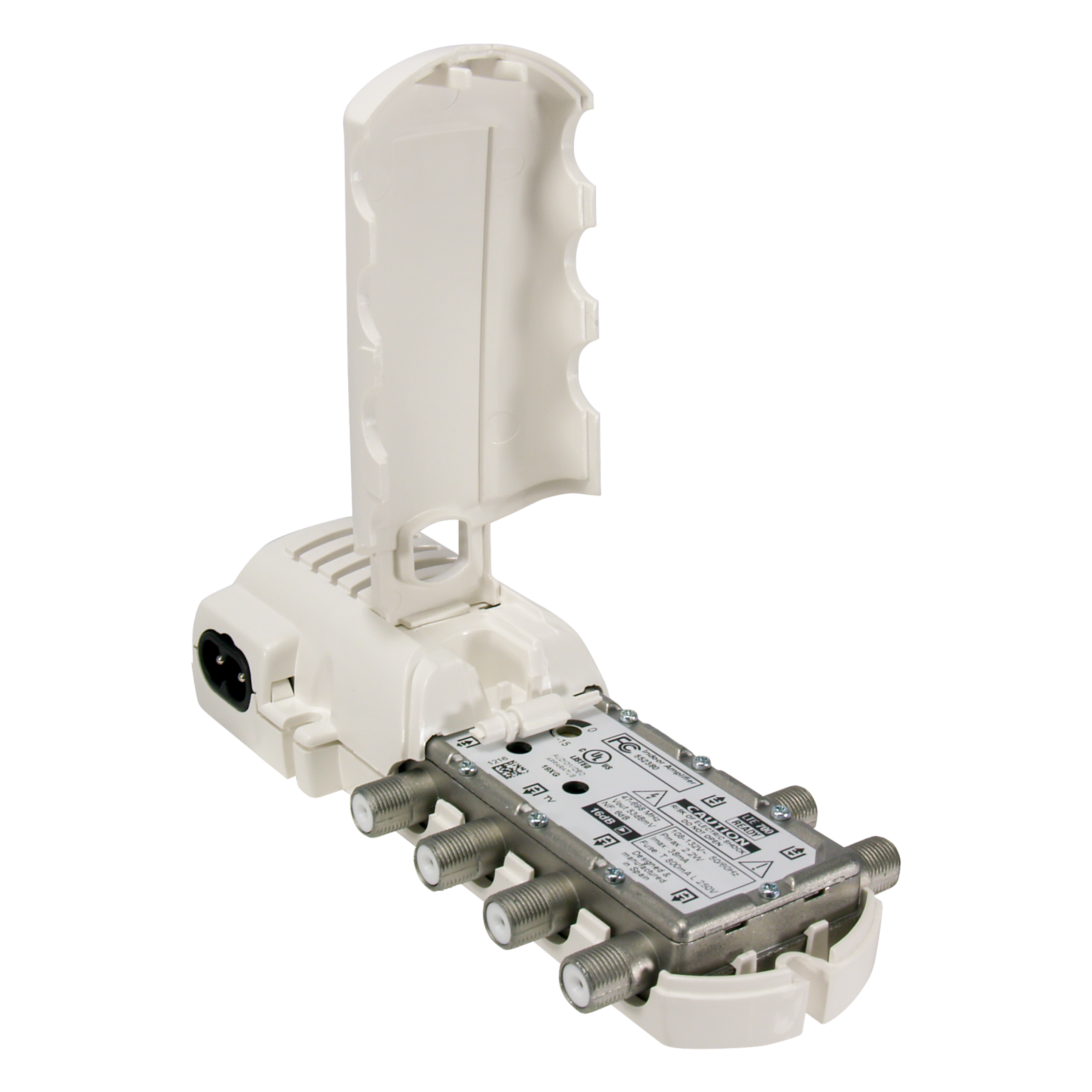

• Manual gain control, protected by a folding cover
• Can be attached to a wall using screws
• “F” connectors

Compare to Channel Master™ 3414, Antennas Direct™ CDA4 (NOTE: the Channel Master™ and Antennas Direct™ amps have 4 outputs, NOT 5).

note - no 12V output for external preamps
