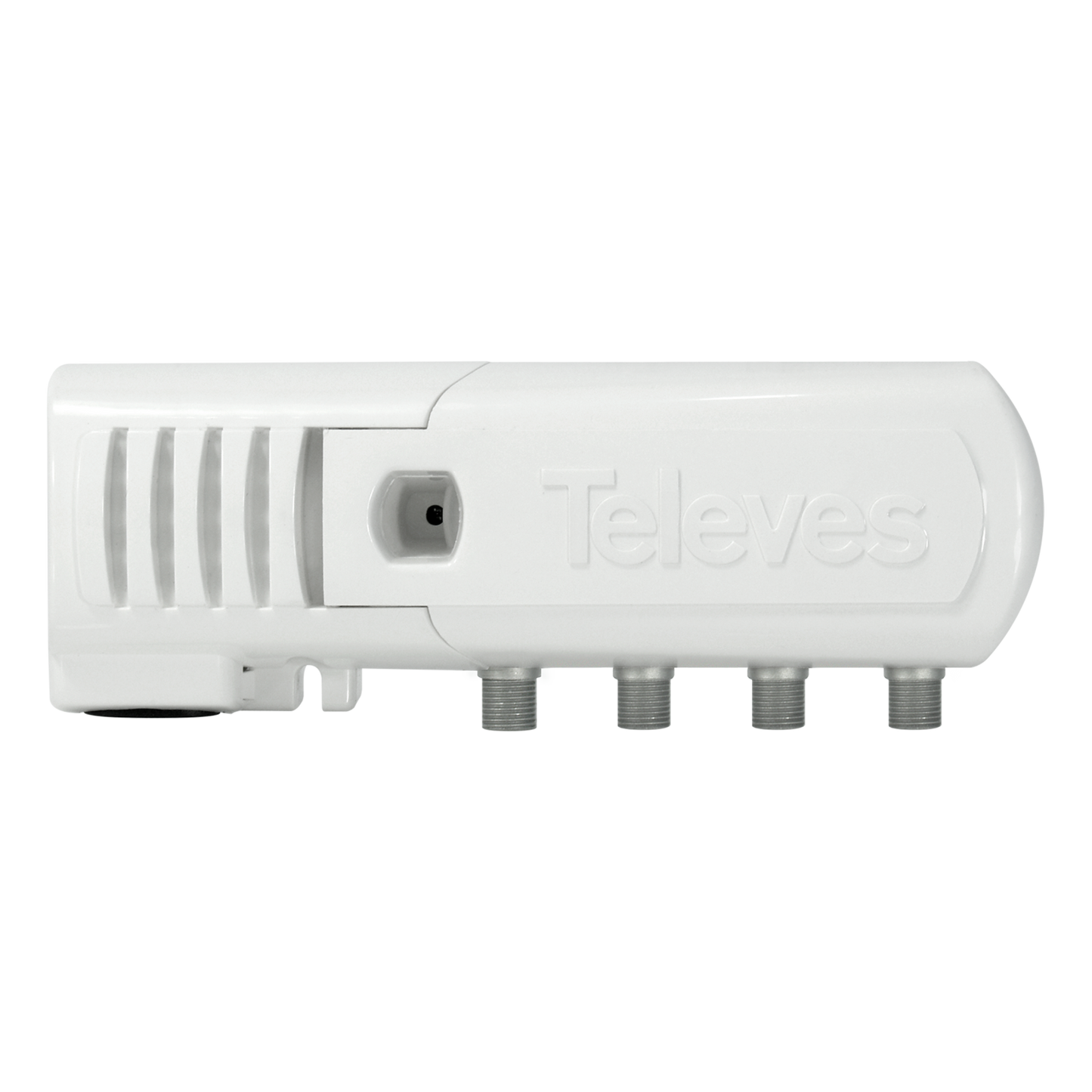

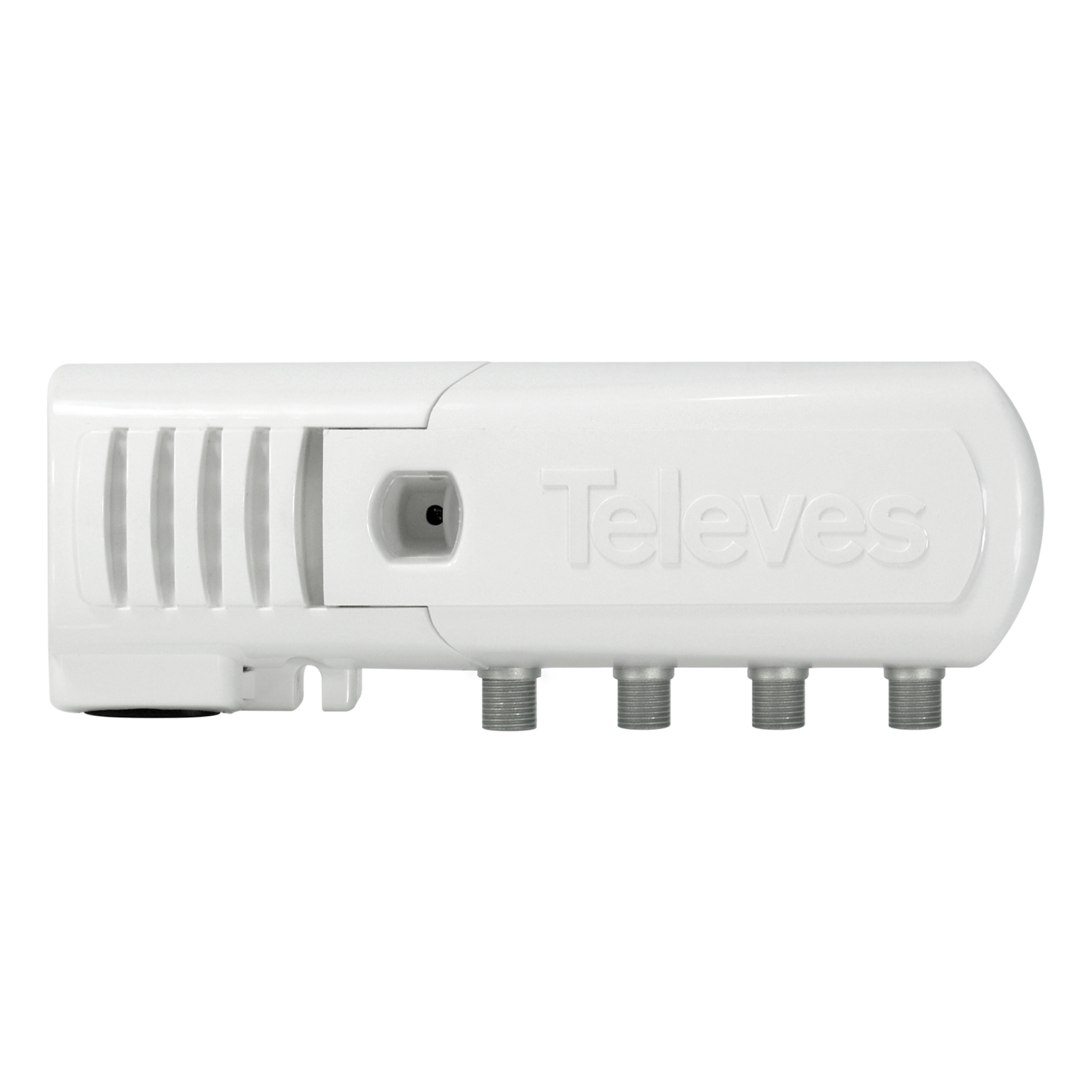

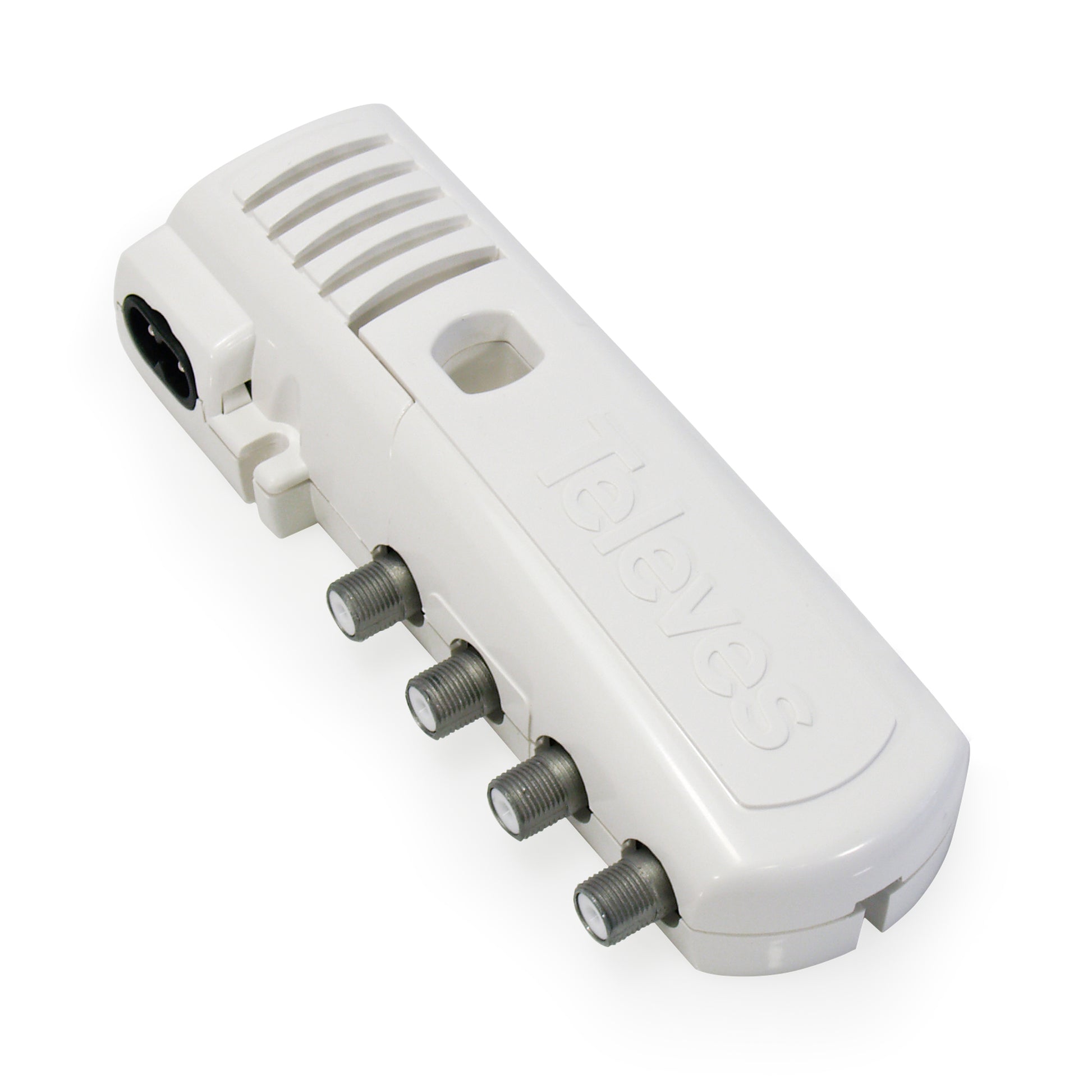

Televes 552280 Distribution Amplifier 3 Output, 20dB Gain, Adjustable Gain Control "F" domestic amplifier, 3 outputs (2+TV): VHF/UHF

Domestic distribution amplifier intended to extend the over the air television signal coming from an antenna in a home coaxial cable network. This amplifier provides a total of 3 outputs, two of which have a maximum gain of 16dB, in addition to a lower gain output of 12dB meant to be connected to the TV set closest to the amplifier itself. Its adjustable gain allows the user to fine tune the ideal level and avoid over amplification. It incorporates LTE filtering to eliminate any potential cell phone signal interference. A built in low consumption UL-listed power supply provides over 50% energy savings compared to the wall-wart adapters found in most other distribution amplifiers. Low visual impact compact design and small size, with cast metal and resistant high grade ABS plastic construction for maximum durability and best in class shielding.

HIGHLIGHTS:

• Three output distribution amplifier
• Adjustable gain, with a maximum gain of 16dB
• Low VHF, high VHF and UHF signals amplification
• Built in LTE700 filter eliminates any potential cell phone interference created by nearby cell phone stations or home cell phone booster systems
• Low consumption power supply provides over 50% energy savings
• UL certified
• High-screening metal chassis provides optimal electromagnetic shielding
• Elegant and discrete form factor can be attached to a wall with screws

• Televes, a world renowned leader of commercial and consumer television solutions with its own research, development and manufacturing facilities provides outstanding quality products for your TV signal reception

Compare to Channel Master™ 3412 (NOTE: The Channel Master™ 3412 amp has 2 outputs, not 3)

note - no 12V output for external preamps
