Televes 536081 Preamp Amplifier, LTE Filter, 3 Input, 22dB
Televes 536081 Preamp Amplifier, LTE Filter, 3 Input, 22dB
  • Load image into Gallery viewer, Televes 536081 Preamp Amplifier, LTE Filter, 3 Input, 22dB
  • Load image into Gallery viewer, Televes 536081 Preamp Amplifier, LTE Filter, 3 Input, 22dB

Televes 536081 Preamp Amplifier, LTE Filter, 3 Input, 22dB

Regular price
$89.95
Sale price
$89.95
Regular price
$109.95
Sold out
Unit price
per

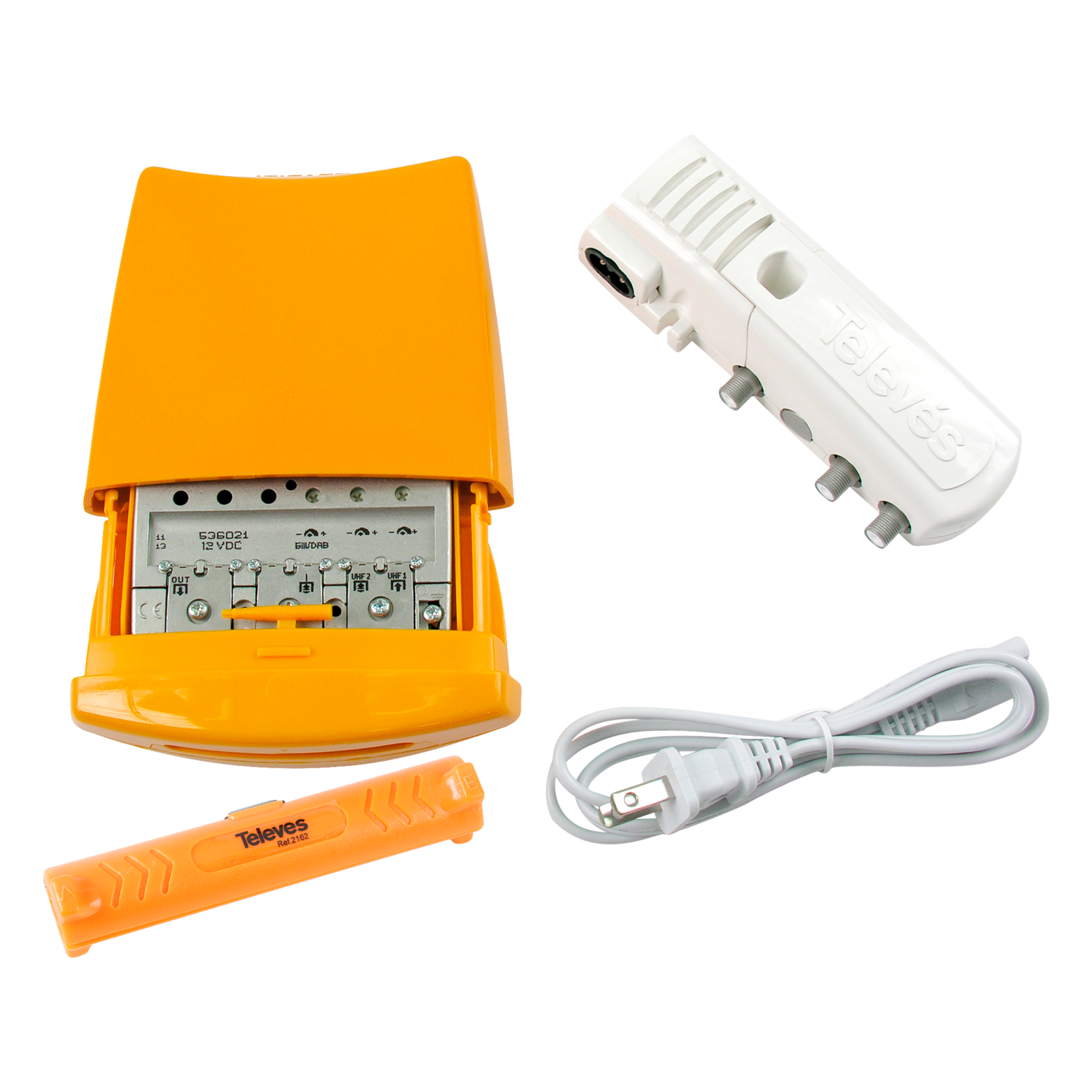

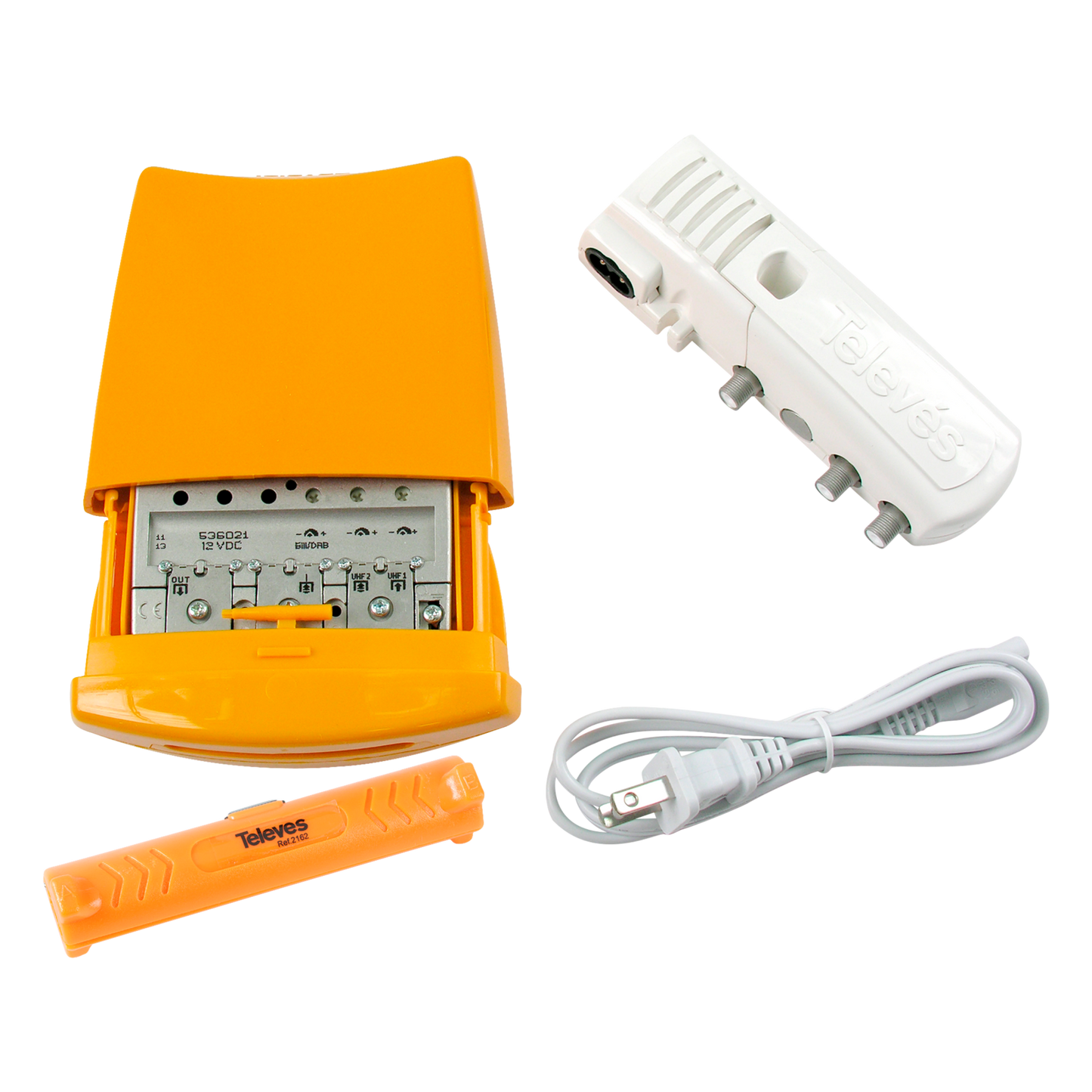

Kit: Low-gain mast amplifier and “F” Power Supply Unit

Ref. 536021 + Ref. 550104 = 536081


The kit consists of:



Ref. 536021: Low-gain mast amplifier, 3 inputs: HighVHF-UHF-UHF
Masthead amplifier for the amplification of terrestrial television signals coming from several antennas.
Equipped with 3 inputs, with amplification on all bands. The amplifier is powered through the output coaxial cable at 12 Vdc.

Ref. 550104: “F” Power Supply Unit,  12V - 220mA, 2 outputs
12 V-power supply (220 mA) that powers equipment through the input coaxial cable while allowing the transmission of the TV signal. Included in the installation to power either mast amplifiers or a BOSS system. Furthermore, it is equipped with two outputs.
The power supply is UL certified (US plug).

Highlights
  • Independent amplification for each individual band
  • EasyF connection system
  • Fully automated manufacturing, subject to the most stringent quality controls
  • High-screening Zamak chassis


Main features
  • ON/OFF switch to allow DC pass towards one of the UHF inputs for the powering of a BOSS system
  • Easy mounting. Equipped with a plastic tie for mast mounting
  • Resistant ABS-plastic orange case for outdoor installation

Product Sheet/Specifications

Data Sheet

User Manual
