Televes 108381, 8 Bay Dipole Array Amplified Antenna, hi-VHF/UHF, 5G/LTE Filtered, Multi-directional Dual Market
FREE SHIPPING PROMO!
Televes 108381 hi-VHF/UHF Antenna 8 Bay Multi-directional Antenna
NOW IN STOCK!
Orders received by 1:00 CT ship the same day (Mon-Fri).

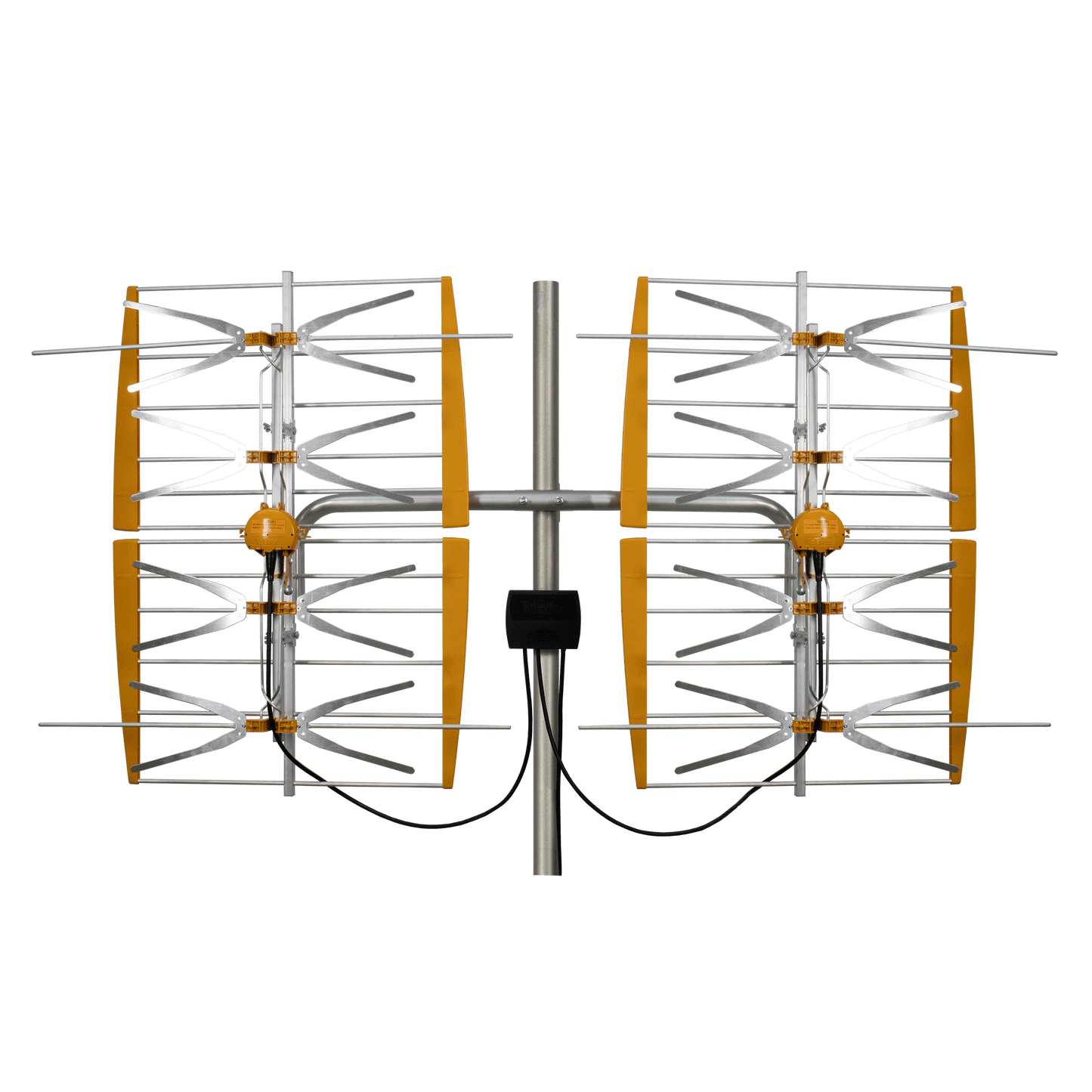

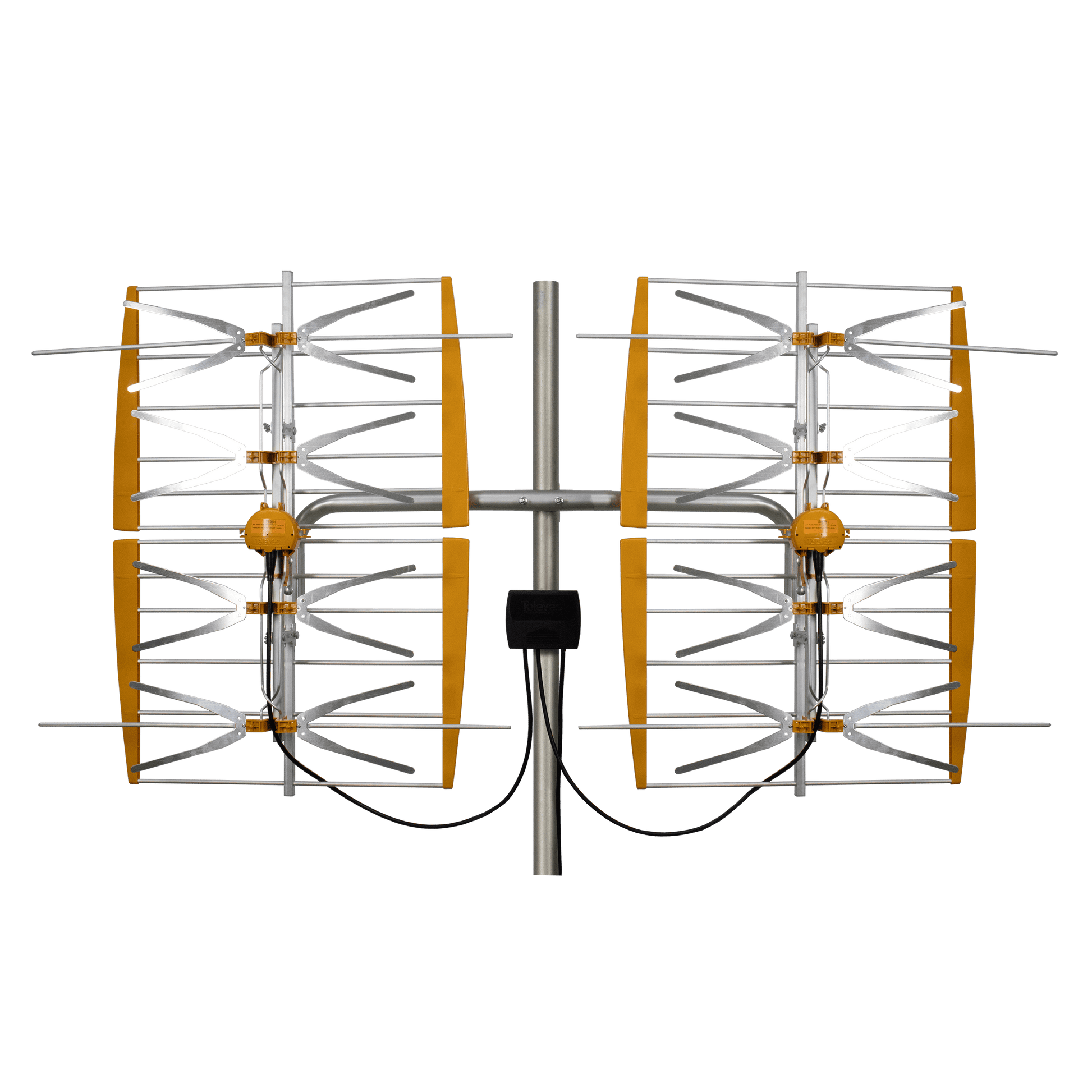

Antenna designed for a reception of mixed HighVHF/UHF signals with a double panel structure. Each panel contains 12-element flat reflectors and 4 stacked dipoles (8 dipoles in total). The dipoles are separated in such a way that their effects multiply, resulting in a high quality reception.

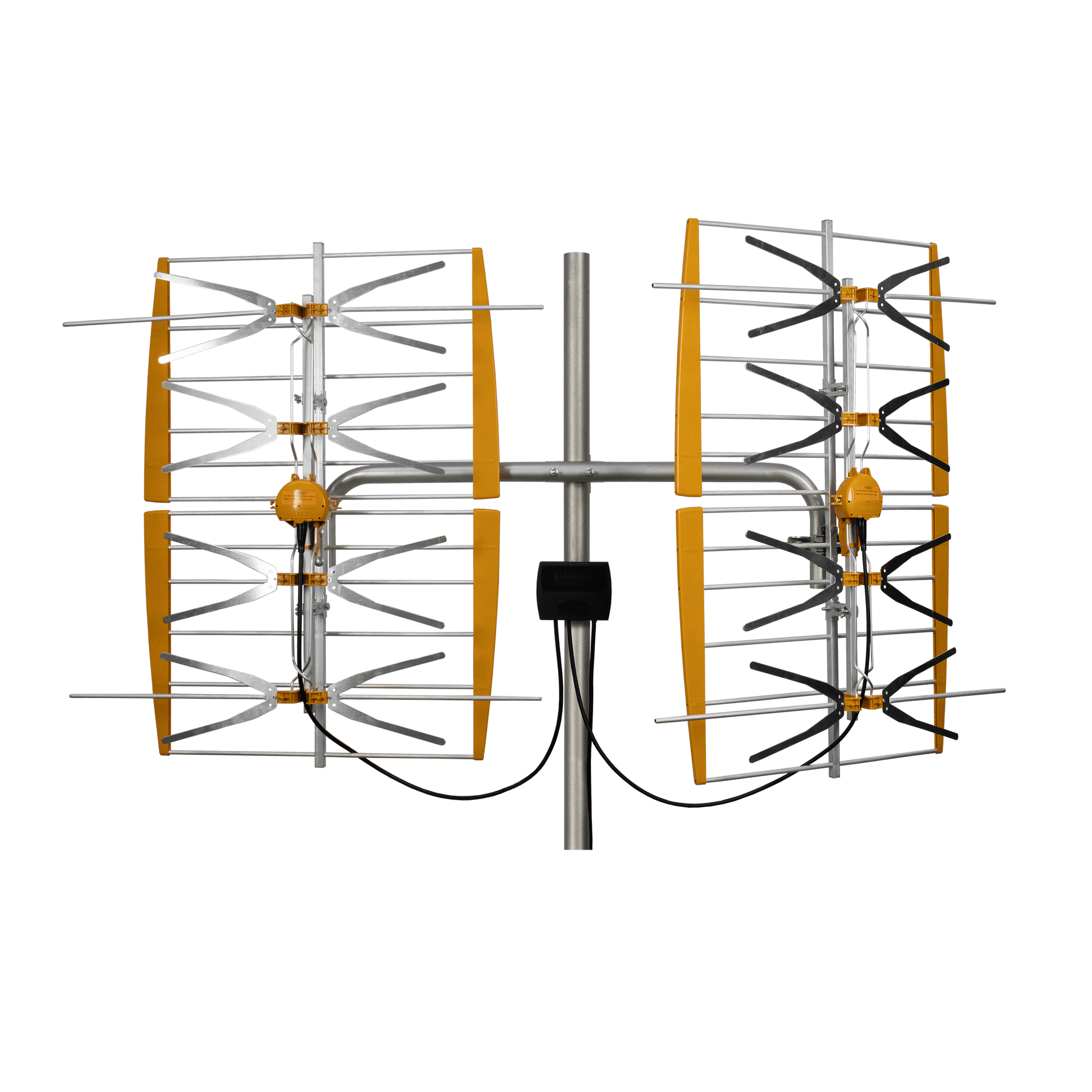

Both panels are connected to a mast amplifier with BOSSTech system, which combines and amplifies signals received in both panels, achieving a high-gain antenna. In addition, one of the panels allows rotation, making this antenna a great solution for those scenarios where signals come from different stations.
A low-consumption UL-listed power supply is included, providing two outputs for convenient distribution to additional TV sets.
Supplied in individual packing
Highlights:
- The Antenna has been completely designed for reception of TV signals on RF channels 7-36 (Repack Ready)
- Crystal clear TV reception enabled by a BOSSTech preamplifier that automatically adjusts its gain independently for VHF and UHF signals for an optimum no-compromise performance
- Signals from different stations are combined on a single output coaxial cable
- Exceptional bandwidth thanks to its stacked-dipole structure and one-panel rotation
- Unlike most other antennas, the preamplifier, power supply and LTE/5G filter are included
- Manufactured in aluminium (stainless) for a long service life

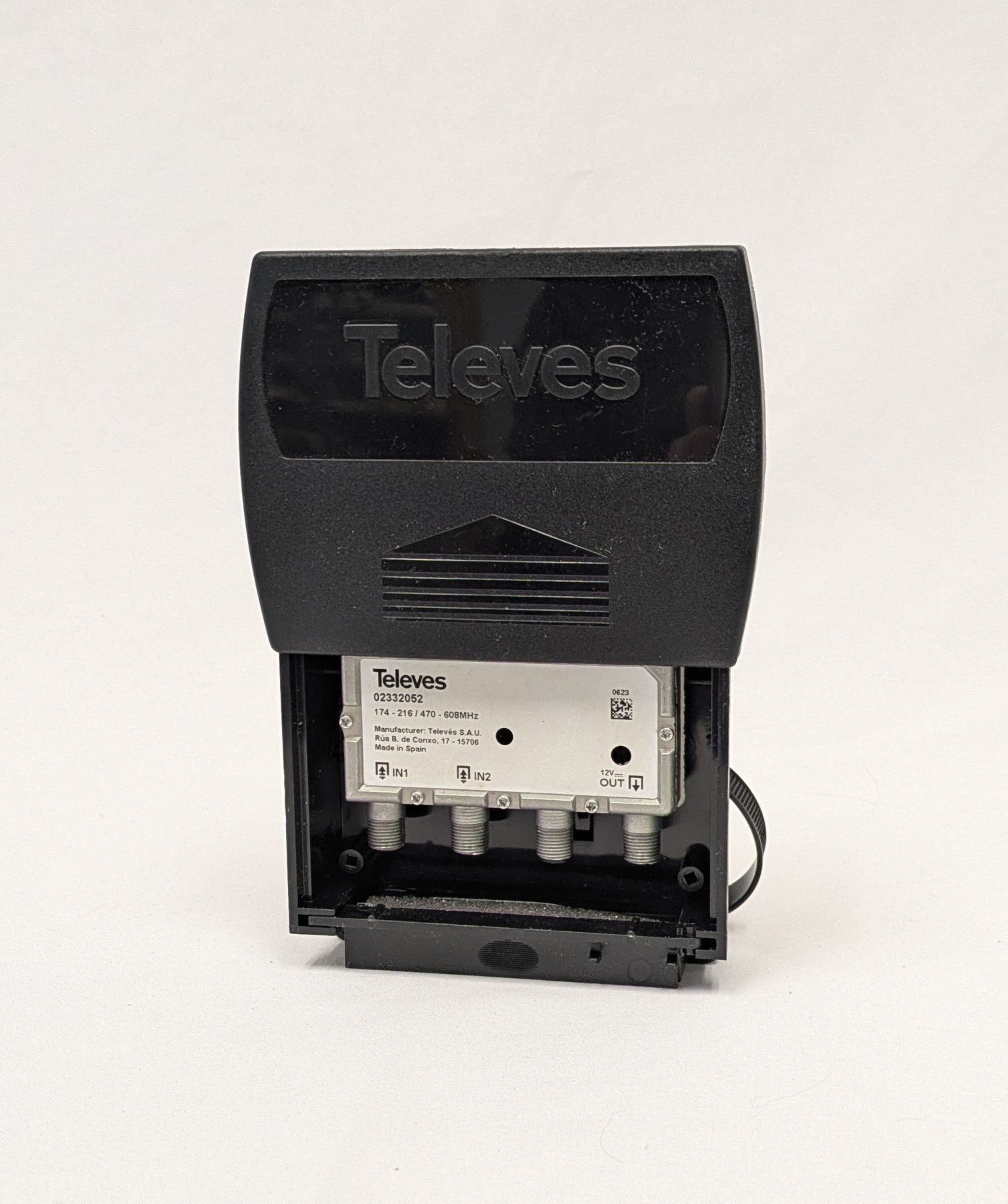

- The BOSSTech preamplifier is housed in a robust black ABS plastic box that provides weather resistance
- Equipped with a plastic tie for the preamp mast mounting
- "F" connectors
TForce technology:
Televes transitions from the traditional silicon era into a new era of electronic component design, allowing integrated circuits to be precisely manufactured for microwave frequency bands. Utilizing “State of the Art” MMIC technology TForce is manufactured using semiconductor compounds such as gallium arsenide (GaAs), providing the resulting products with unparalleled features and performance
Televes has reinvented the antenna concept. Until now, an antenna was just the reception component of a TV installation in which gain and directivity were the main features. The introduction of a smart device like BOSS provides the antenna with the capacity to receive very weak signals without the risk of being affected by very strong signals, the result is a dynamic balance between weak and strong signals that provides optimum signal levels at all times: the "dynamic range" concept turns out to be the most outstanding among quality parameters.
The creation of TForce with BOSS technology using MMIC components is an extraordinary milestone in the optimization of the dynamic range. The technology that allowed the reception of lost signals from distant satellites is now allowing the enhancement of the coverage range in DTT installations.
keywords HD, UHDTV, hi def
