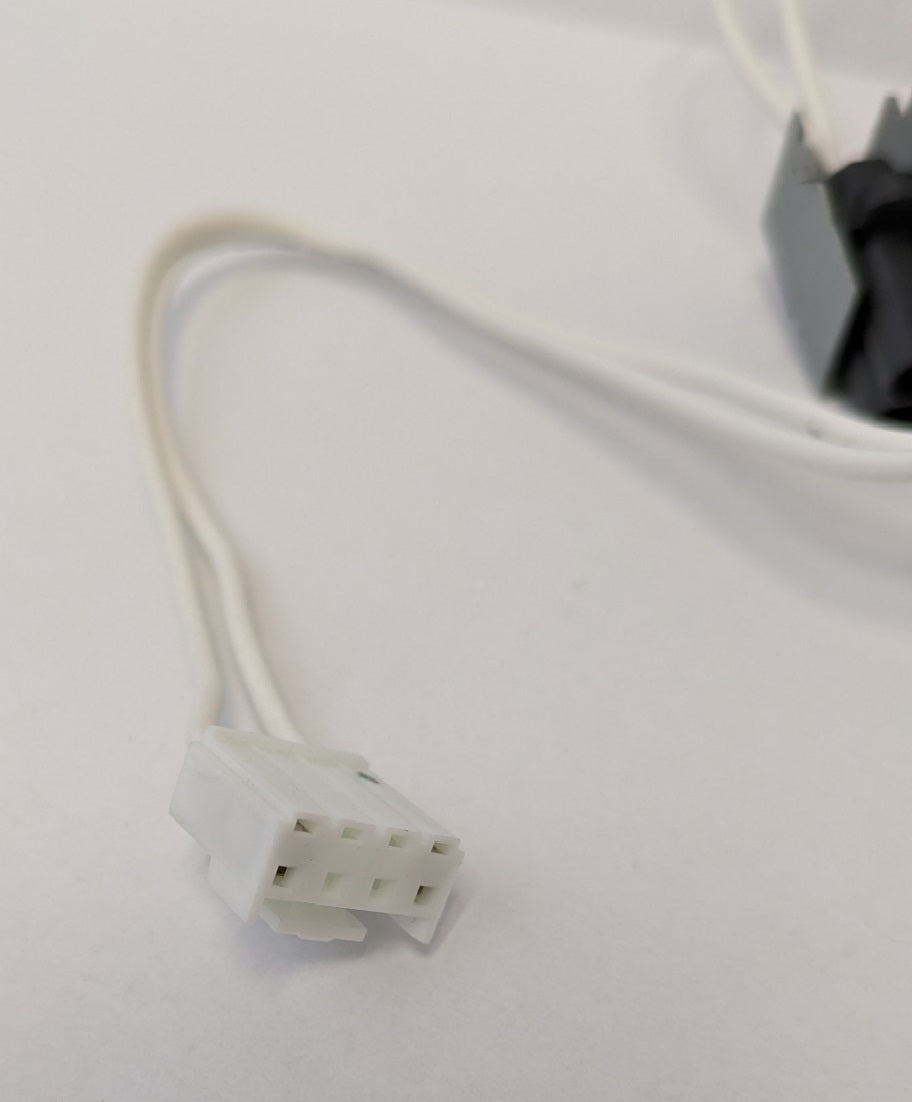

Mitsubishi TV cable assembly for lamp, connects to TV ballast and lamp housing (915B441001, 915B455011 and 915B455012)

Mitsubishi TV cable assembly / harness for lamp, installs in TV then connects to TV ballast and lamp housing.

Mitsubishi cable assembly for TV, connects between the DLP lamp ballast and the DLP lamp housing. This is the connector in the TV that mates with the 2 pin connector on the lamp housing. If the 2 pin lamp connector in your TV is damaged, this is what you need.

Used on Mitsubishi TV's that use these housings: 915B441001, 915B455011 and 915B455012. Will NOT work with any other housing part numbers. See TV model number list below. Cable length is 13”. End to end length is 14”. The metal bracket can be easily removed if necessary.

These are new, pulled from new Mitsubishi light engines.

Orders received by 3PM central time will ship the same day (Mon-Fri).

This item is covered by a 6 month warranty.

Used on these model numbers:
WD-60638, WD-60638CA, WD-60738, WD-60C10, WD-65638, WD-65638CA, WD-65738, WD-65838, WD-65C10, WD-73638, WD-73738, WD-73838, WD-73C10, WD-82738, WD-82838, WD-73640, WD-73740, WD-73840, WD-73C11, WD-73CA1, WD-82740, WD-82840, WD-82CB1, WD-83840, WD-92840, WD-73642, WD-73742, WD-73842, WD-73C12, WD-82642, WD-82742, WD-82842, WD-82C12, WD-92742, WD-92842, WD-92A12
